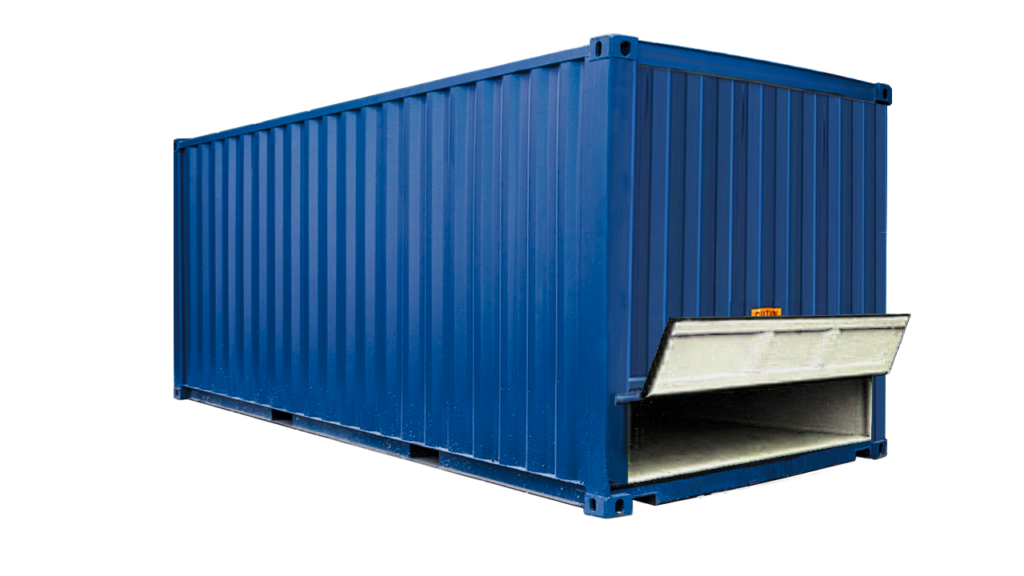

20' BULK

Dimensions

  • Exterior (6,058 length | 2,484 width | 2,591 height) mt
  • Interior (5,456 length | 2,294 width | 2,275 height) mt

Specifications

  • Max load 27, 540 kg
  • Mgw 30, 480 kg
  • Tare 2,940 kg
  • Volume 28,50 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions). Capacities are approximate and will be adjusted to match the information shown on the container's CSC plate.

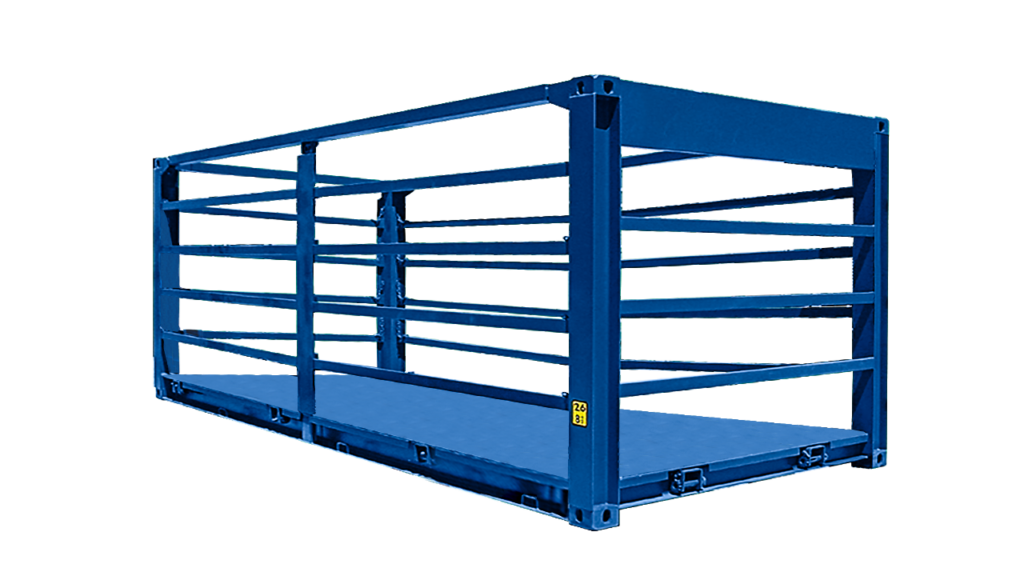

20' CAGE

Dimensions

  • Exterior (6,058 length | 2,438 width | 2,591 height) mt
  • Interior (5,943 length | 2,318 width| 2,275 height) mt

Specifications

  • Max. load: 21, 610 kg
  • Mgw 24, 000 kg
  • Tare 2,390 kg
  • Volume 31,40 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions). Capacities are approximate and will be adjusted to match the information shown on the container's CSC plate.

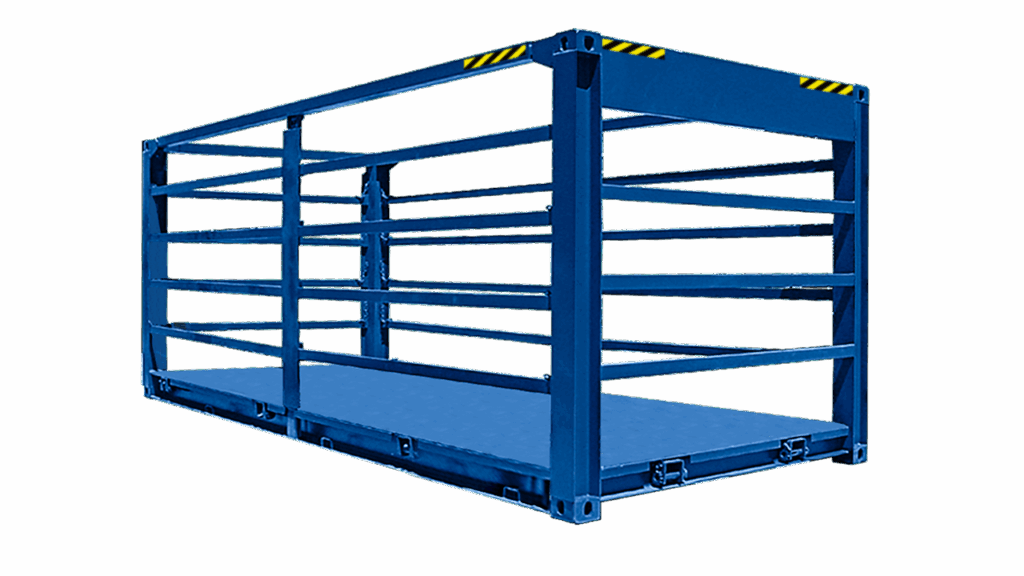

20' CAGE HC

Dimensions

  • Exterior (6.058 long | 2.438 wide | 2.896 high) m
  • Interior (5.943 long | 2.318 wide | 2.694 high) m

Specifications

  • Max Load 27,110 kg
  • Mgw 30,000 kg
  • Tare 2,750 kg
  • Volume 37.10 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions). Capacities are approximate and will be adjusted to match the information shown on the container's CSC plate.

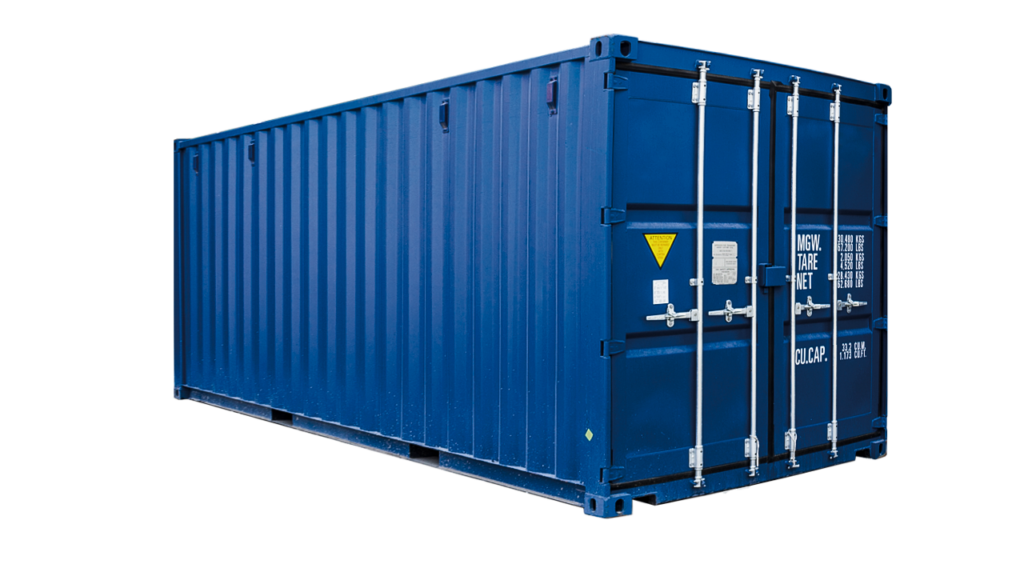

20' DRY VAN

Dimensions

  • Exterior (6.058 long | 2.438 wide | 2.591 high) mt.
  • Interior (5.898 long | 2.352 wide | 2.393 high) mt.

Specifications

  • Max load 28,260 kg
  • MGW 30,480 kg
  • Tare 2,220 kg
  • Volume 33.20 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions). Capacities are approximate and will be adjusted to match the information shown on the container's CSC plate.

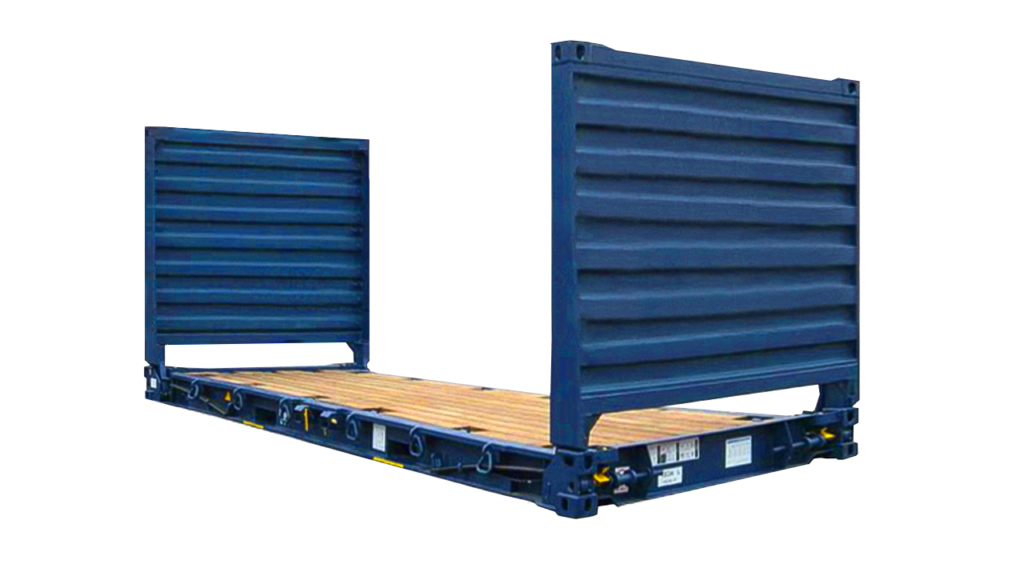

20' FLAT RACK

Dimensions

  • Exterior (6,058 long | 2,438 wide | 2,591 high) mt.
  • Interior Interior (5,950 long | 2,226 high) mt.

Specifications

  • Max load 27, 110 kg
  • Mgw 30, 000 kg
  • Tare weight 2,890 kg
  • Volume 32, 30 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions). Capacities are approximate and will be adjusted to match the information shown on the container's CSC plate.

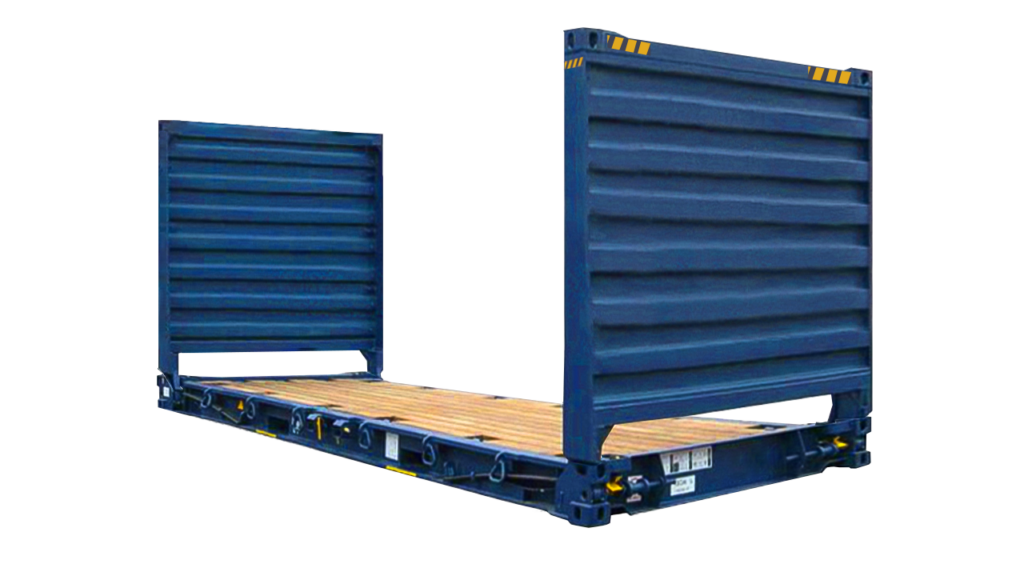

20' FLAT RACK HC

Dimensions

  • Exterior (6,058 length | 2,438 width | 2,896 height) mt
  • Interior (5,950 long | 2,226 high) mt

Specifications

  • Max. load: 27, 110 kg
  • Mgw 30, 000 kg
  • Tare weight 2,890 kg
  • Volume 32, 30 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions). Capacities are approximate and will be adjusted to match the information shown on the container's CSC plate.

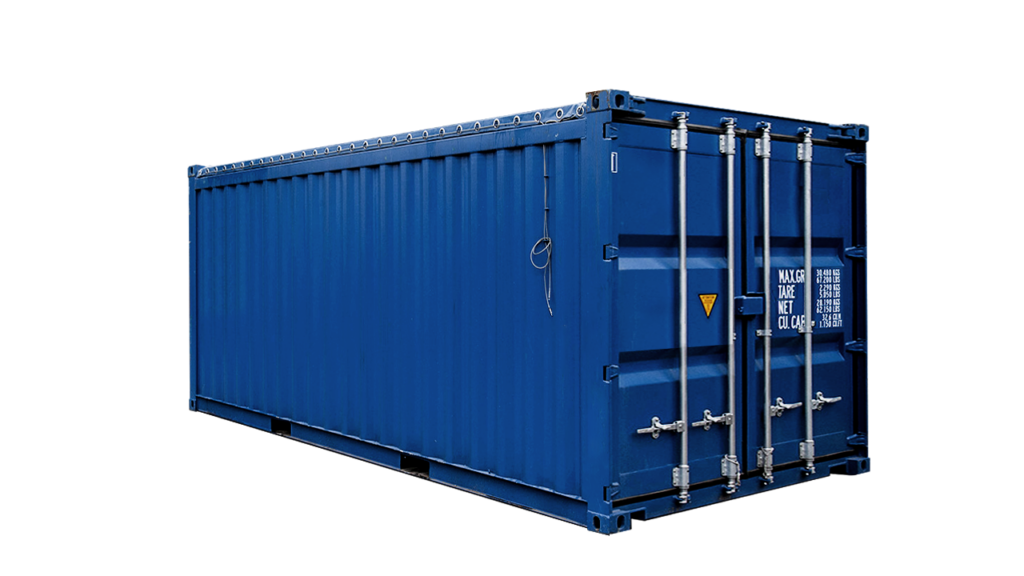

20' OT

Dimensions

  • Exterior (6,058 length | 2,438 width | 2,591 height) mt
  • Interior (5,940 length | 2,352 width| 2,360 height) mt

Specifications

  • Max load 24, 000 kg
  • Mgw 27,120 kg
  • Tare 3, 120 kg
  • Volume 33,20 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions). Capacities are approximate and will be adjusted to match the information shown on the container's CSC plate.

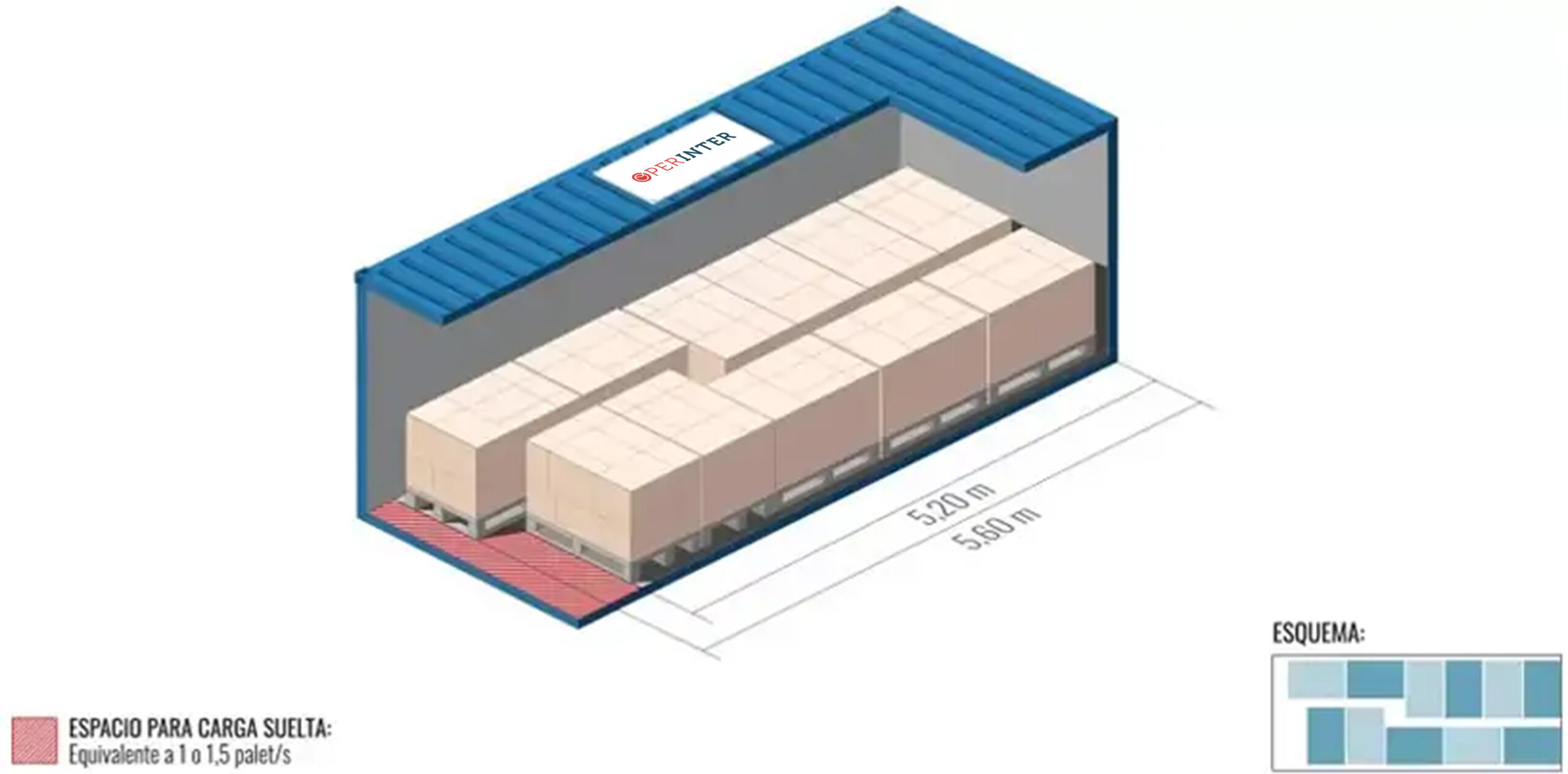

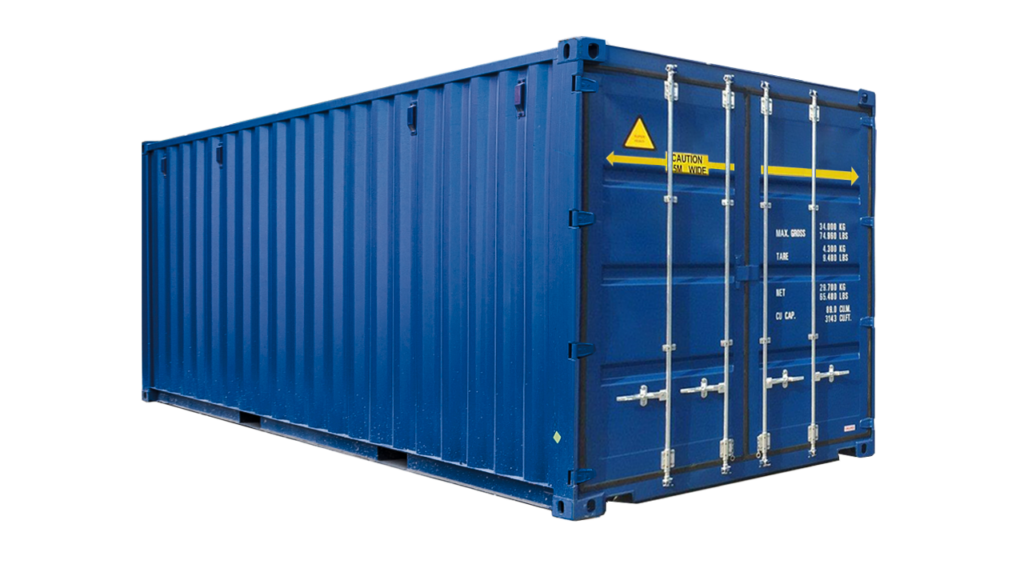

20' PW (14 Euro pallets)

Dimensions

  • Exterior (6,058 length | 2,484 width | 2,591 height) mt
  • Interior (5,898 length | 2,426 width | 2,393 height) mt

Specifications

  • Max load 27, 990 kg
  • Mgw 30, 480 kg
  • Tare 2,490 kg
  • Volume 38.60 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions). Capacities are approximate and will be adjusted to match the information shown on the container's CSC plate.

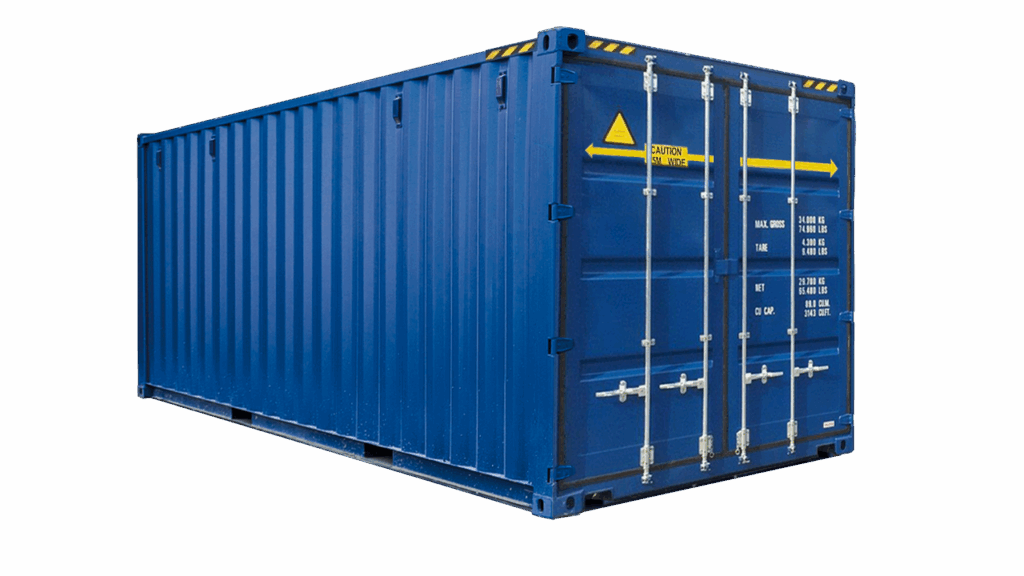

20' PW HC (14 Euro pallets)

Dimensions

  • Exterior (6,058 length | 2,438 width | 2,896 height) mt
  • Interior (5,898 long | 2,426 wide | 2,712 high) mt.

Specifications

  • Max load 27, 990 kg
  • Mgw 30,480 kg
  • Tare 2,490 kg
  • Volume 36,60 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions). Capacities are approximate and will be adjusted to match the information shown on the container's CSC plate.

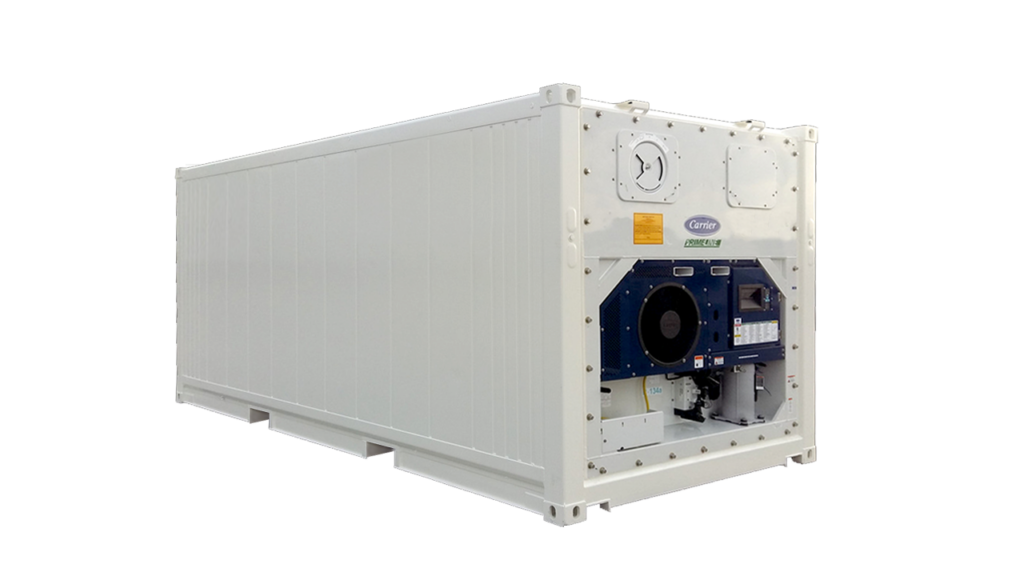

20' REEFER

Dimensions

  • Exterior (6,058 length | 2,484 width | 2,591 height) mt
  • Interior (5,456 length | 2,294 width| 2,275 height) mt

Specifications

  • Max load 27, 540 kg
  • Mgw 30, 480 kg
  • Tare 2,940 kg
  • Volume 28,50 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions). Capacities are approximate and will be adjusted to match the information shown on the container's CSC plate.

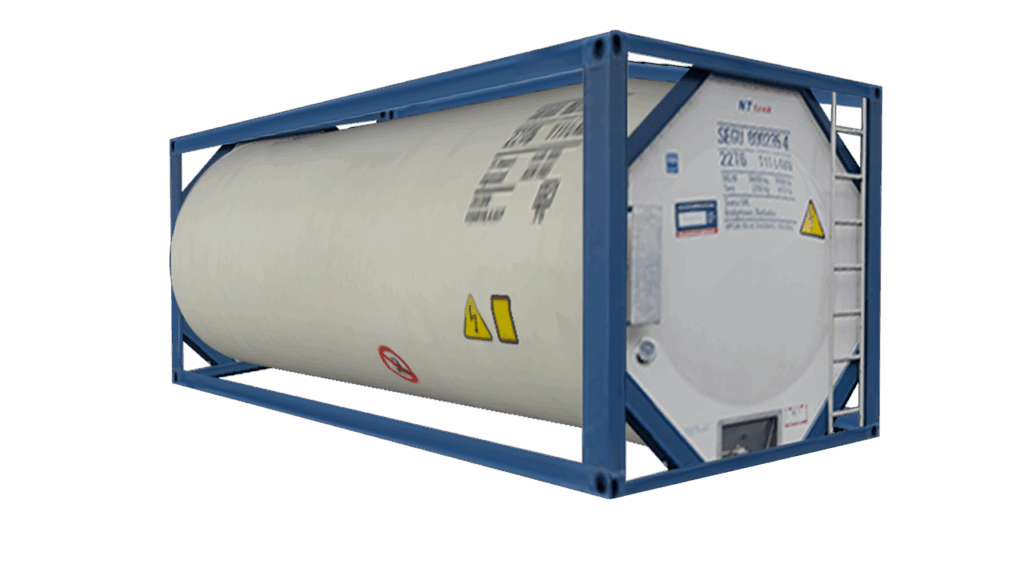

20' TANKER

Dimensions

  • Exterior (7,820 long | 2,550 wide | 2,670 high) m
  • Interior (7,820 long | 2,550 wide | 2,670 high) m

Specifications

  • Max load 27, 540 kg
  • Mgw 4.0 bar
  • Tare weight 3,540 - 3,830 kg
  • Volume 21,000 - 26,000 ltr

* Equipment dimensions may vary by manufacturer (especially interior dimensions). Capacities are approximate and will be adjusted to match the information shown on the container's CSC plate.

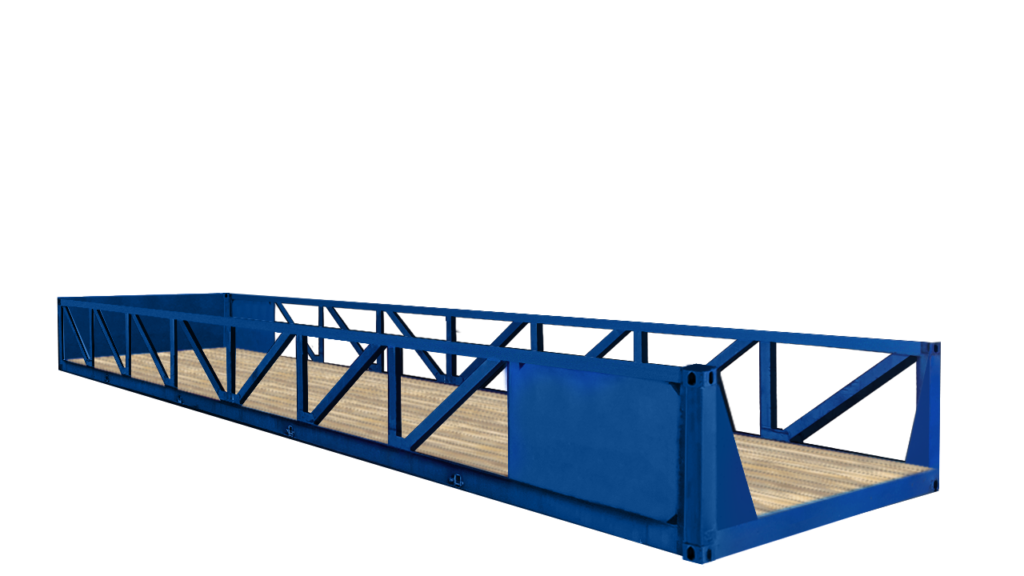

40' CAGE

Dimensions

  • Exterior (12,192 length | 2,438 width | 2,292 / 2,591 height) mt
  • Interior (12,086 length | 2,320 width| 1,120 / 2,275 height) mt

Specifications

  • Max load 26, 760 kg
  • Mgw 30, 480 kg
  • Tare 3,720 kg
  • Volume 31,40 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions). Capacities are approximate and will be adjusted to match the information shown on the container's CSC plate.

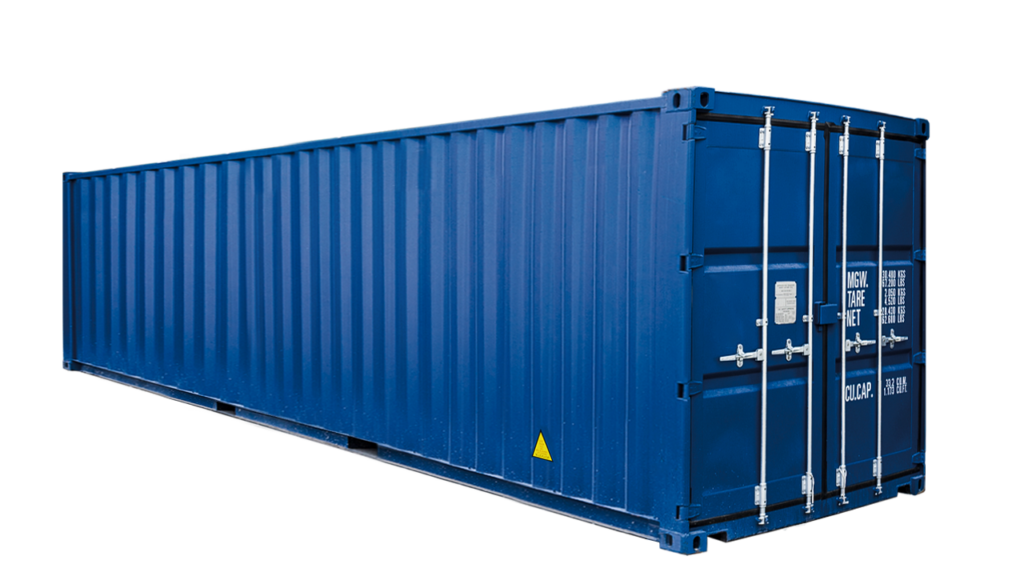

40' DRY VAN

Dimensions

  • Exterior (12,192 length | 2,438 width | 2,591 height) mt
  • Interior (12,032 length | 2,352 width| 2,393 height) mt

Specifications

  • Max load 28, 650 kg
  • Mgw 30,480 kg
  • Tare 3,850 kg
  • Volume 67.70 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions). Capacities are approximate and will be adjusted to match the information shown on the container's CSC plate.

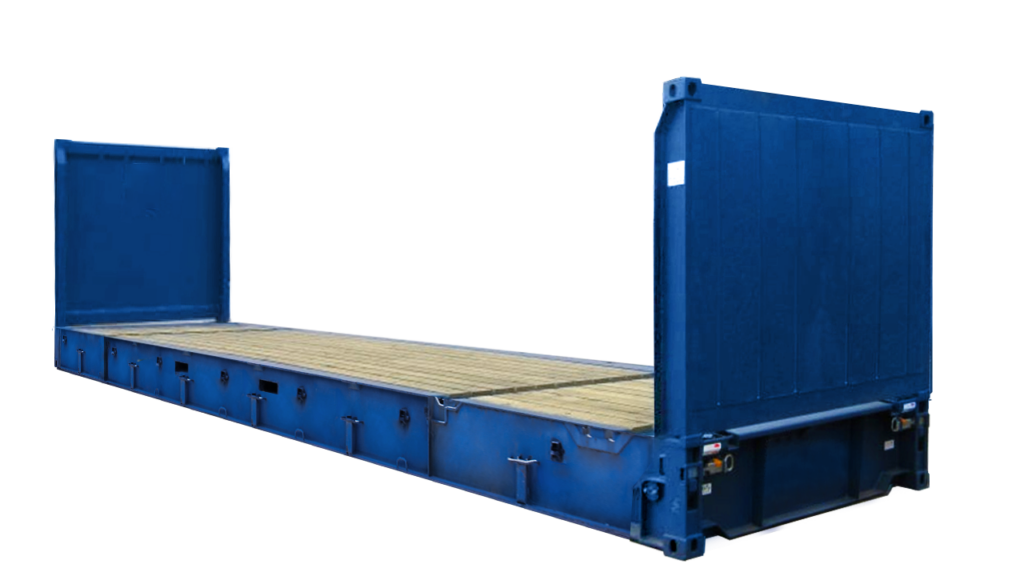

40' FLAT RACK

Dimensions

  • Exterior (12,192 length | 2,438 width | 2,591 height) mt
  • Interior (12,064 length | 2,438 width | 1,953 height) mt

Specifications

  • Max load 29, 870 kg
  • Mgw 35,000 kg
  • Tare 5,130 kg
  • Volume 57.41 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions). Capacities are approximate and will be adjusted to match the information shown on the container's CSC plate.

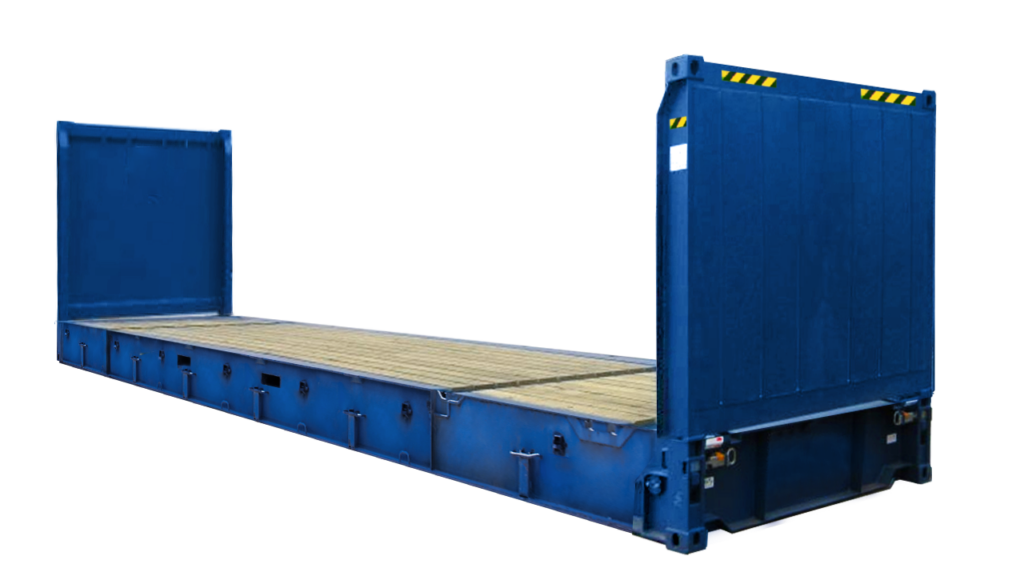

40' FLAT RACK HC

Dimensions

  • Exterior (12,192 length | 2,438 width | 2,591 height) mt
  • Interior (12,064 length | 2,438 width | 1,953 height) mt

Specifications

  • Max load 29, 870 kg
  • Mgw 35,000 kg
  • Tare 5,130 kg
  • Volume 57.41 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions). Capacities are approximate and will be adjusted to match the information shown on the container's CSC plate.

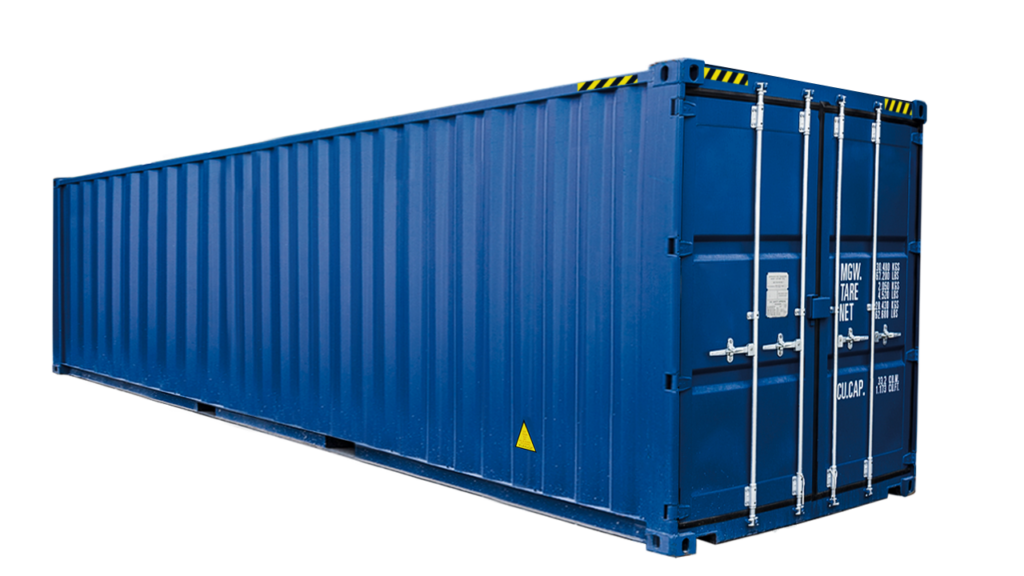

40' HC

Dimensions

  • Exterior (12,192 length | 2,438 width | 2,896 height) mt
  • Interior (12,032 length | 2,352 width | 2,692 height) mt

Specifications

  • Max load 29, 870 kg
  • Mgw 30,480 kg
  • Tare 5,130 kg
  • Volume 76.50 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions). Capacities are approximate and will be adjusted to match the information shown on the container's CSC plate.

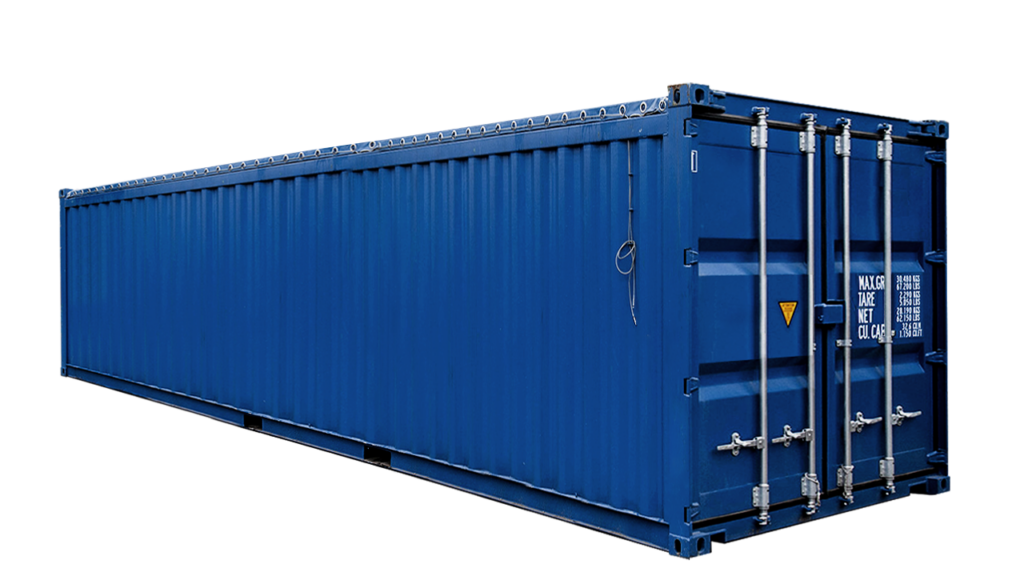

40' OT

Dimensions

  • Exterior (12,192 length | 2,438 width | 2,591 height) mt
  • Interior (12,032 length | 2,352 width| 2,360 height) mt

Specifications

  • Max load 26, 530 kg
  • Mgw 30,480 kg
  • Tare 3,950 kg
  • Volume 66.8 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions). Capacities are approximate and will be adjusted to match the information shown on the container's CSC plate.

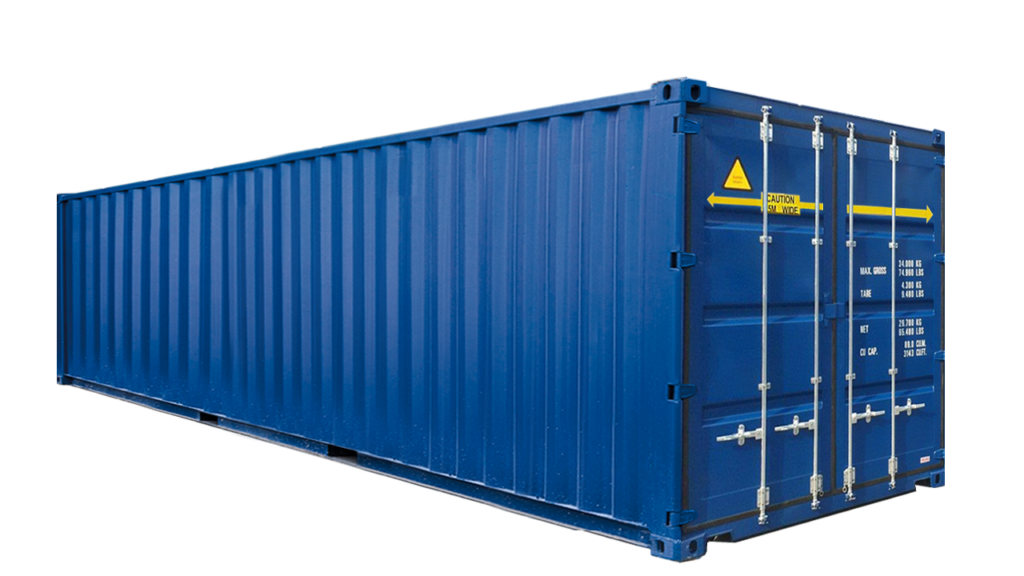

40' PW (30 Euro pallets)

Dimensions

  • Exterior (12,192 length | 2,484 width | 2,591 height) mt
  • Interior (12,100 length | 2,426 width| 2,383 height) mt

Specifications

  • Max load 29, 850 kg
  • Mgw 34,000 kg
  • Tare 4,150 kg
  • Volume 79.10 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions). Capacities are approximate and will be adjusted to match the information shown on the container's CSC plate.

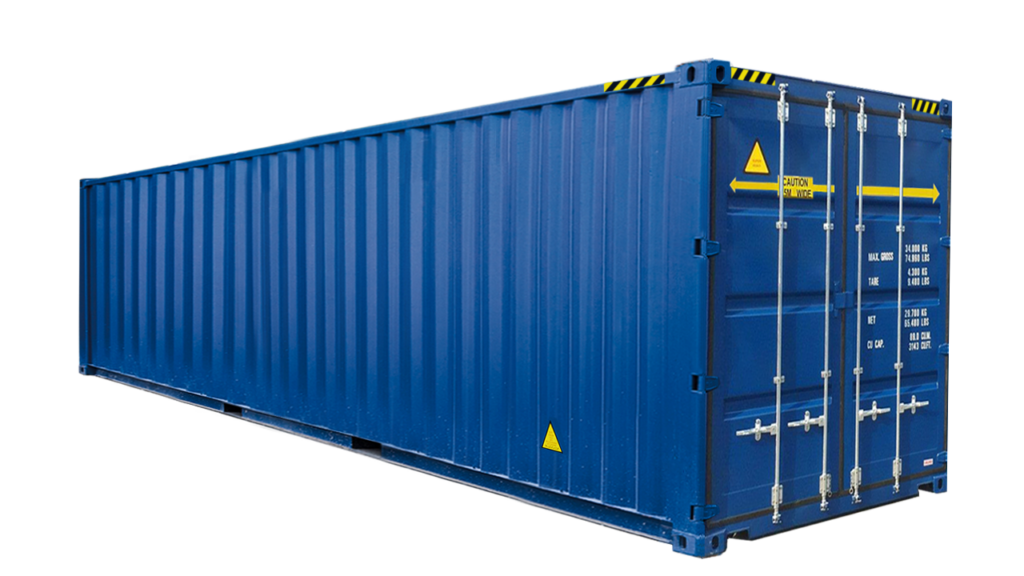

40' PW HC (30 Euro pallets)

Dimensions

  • Exterior (12,192 length | 2,484 width | 2,896 height) mt
  • Interior (12,100 length | 2,426 width | 2,694 height) mt

Specifications

  • Max load 29, 850 kg
  • Mgw 34, 000 kg
  • Tare 4,150 kg
  • Volume 79.10 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions). Capacities are approximate and will be adjusted to match the information shown on the container's CSC plate.

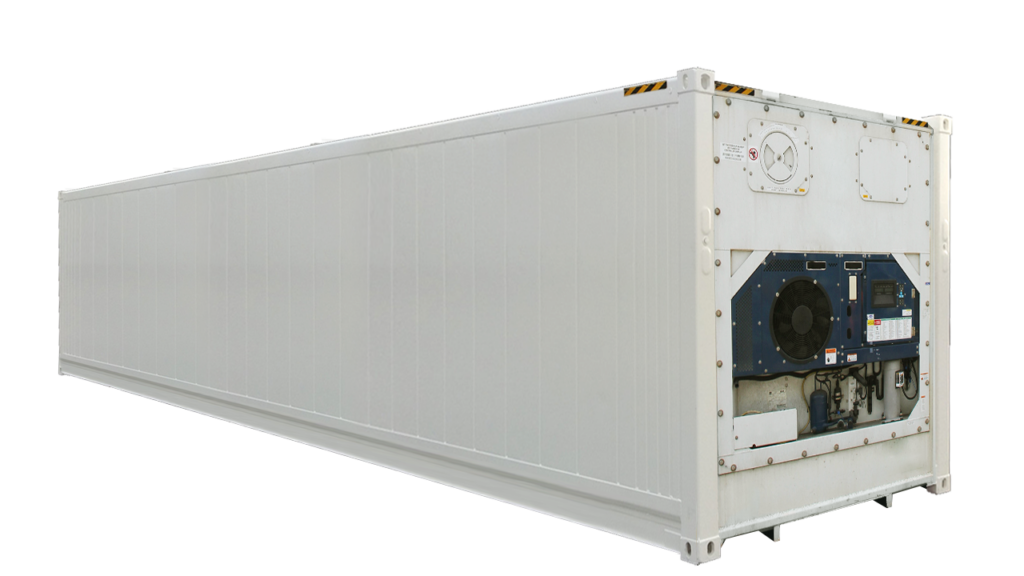

40' REEFER HC

Dimensions

  • Exterior (12,192 length | 2,438 width | 2,896 height) mt
  • Interior (11,590 length | 2,294 width| 2,557 height) mt

Specifications

  • Max load 30, 420 kg
  • Mgw 35,000 kg
  • Tare weight 4,580 kg
  • Volume 67.90 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions). Capacities are approximate and will be adjusted to match the information shown on the container's CSC plate.

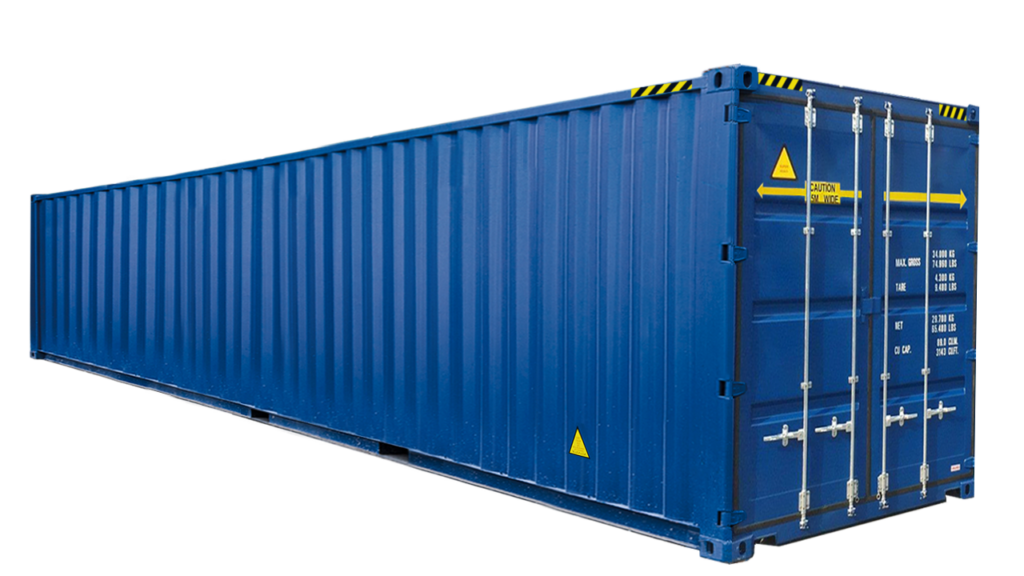

45' PW HC (33 Euro pallets)

Dimensions

  • Exterior (13,716 length | 2,484 width | 2,896 height) mt
  • Interior (13,532 length | 2,426 width | 2,694 height) mt

Specifications

  • Max load 29, 350 kg
  • Mgw 34, 000 kg
  • Tare weight 4,650 kg
  • Volume 88.40 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions). Capacities are approximate and will be adjusted to match the information shown on the container's CSC plate.

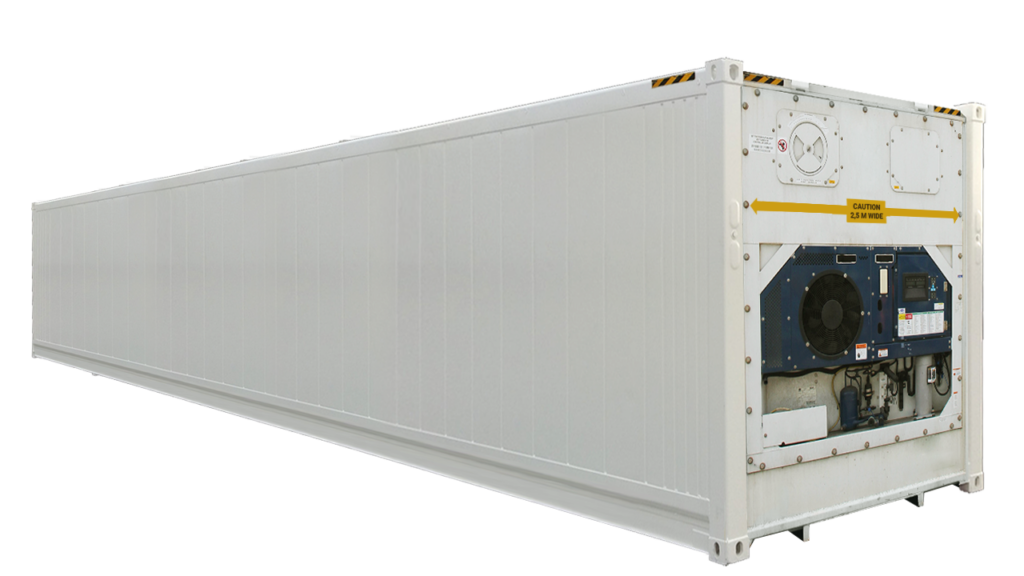

45' REEFER PW HC (33 Euro pallets)

Dimensions

  • Exterior (13,716 length | 2,484 width | 2,896 height) mt
  • Interior (13,532 length | 2,426 width| 2,694 height) mt

Specifications

  • Max load 29, 350 kg
  • Mgw 34, 000 kg
  • Tare weight 4,650 kg
  • Volume 88.40 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions). Capacities are approximate and will be adjusted to match the information shown on the container's CSC plate.

AKH

Dimensions

  • 62.9 cm x 244 cm x 117.8 cm x 156.2 cm x 154.4 cm

Volume

  • 3.4 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions).

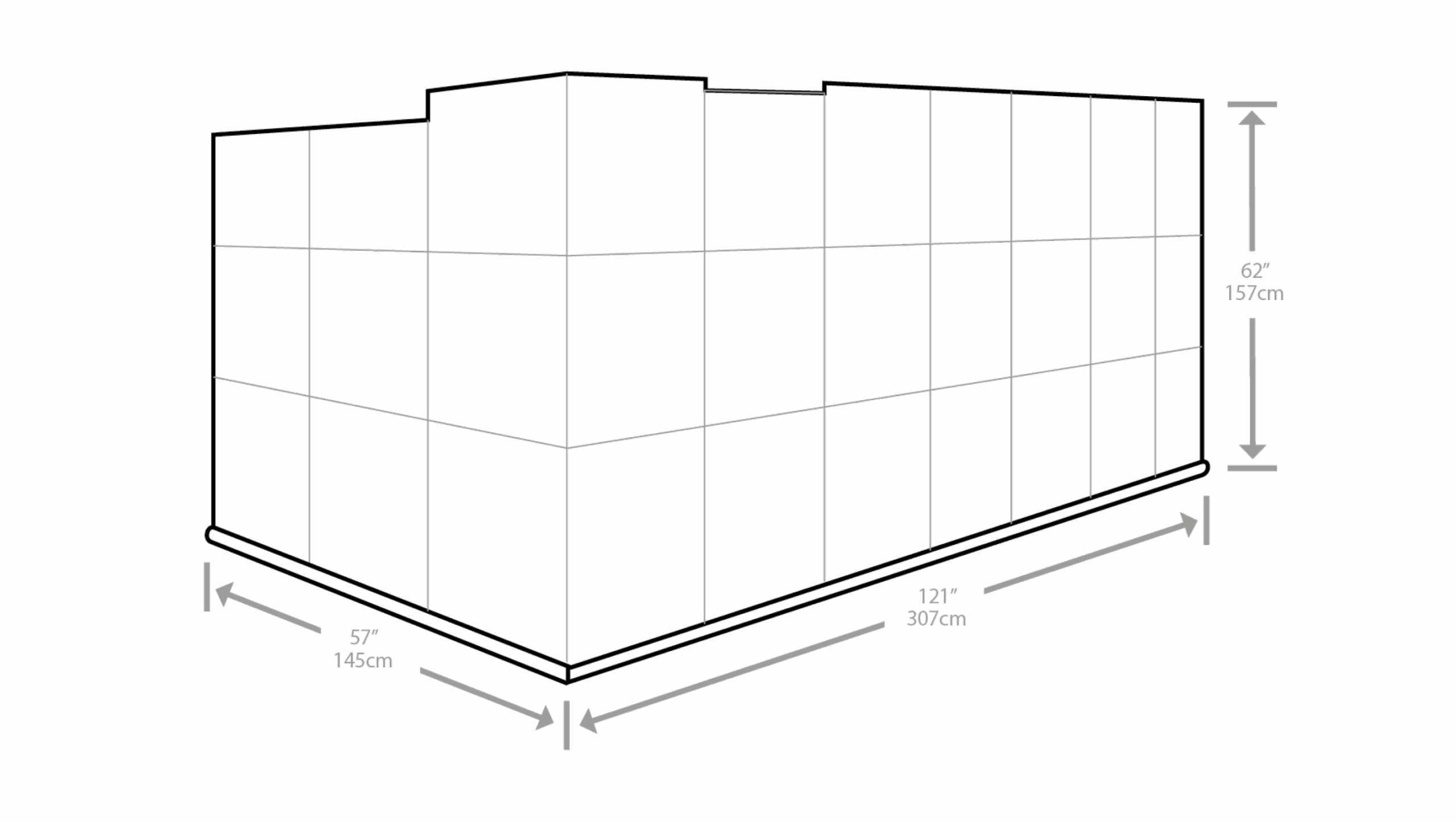

LD11

Dimensions

  • 154,4 cm x 163,5 cm x 317,5 cm

Volume

  • 7 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions).

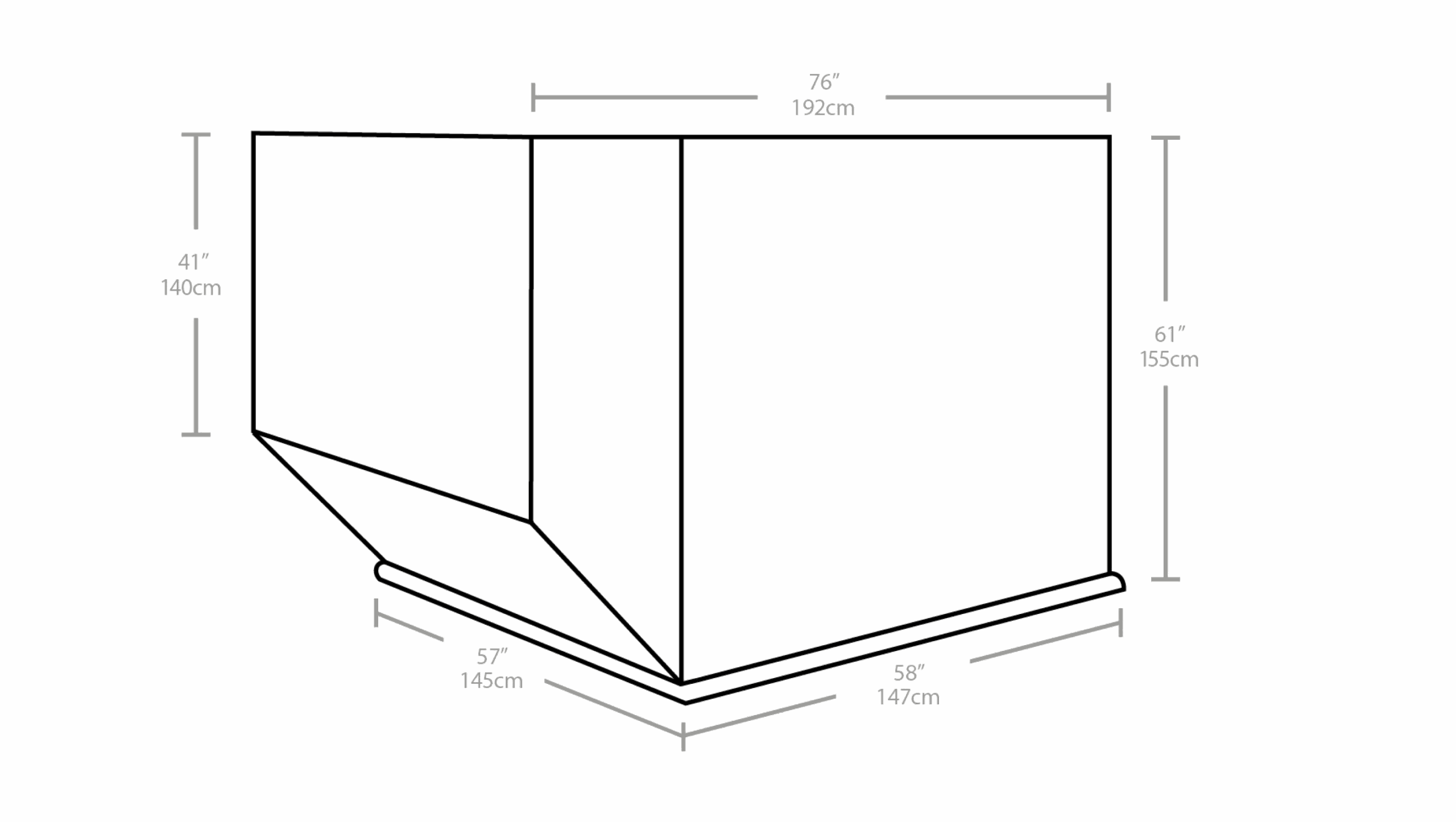

LD3

Dimensions

  • 201.6 cm x 110.2 cm x 163.5 cm x 156.2 cm x 154.4 cm

Volume

  • 4,2 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions).

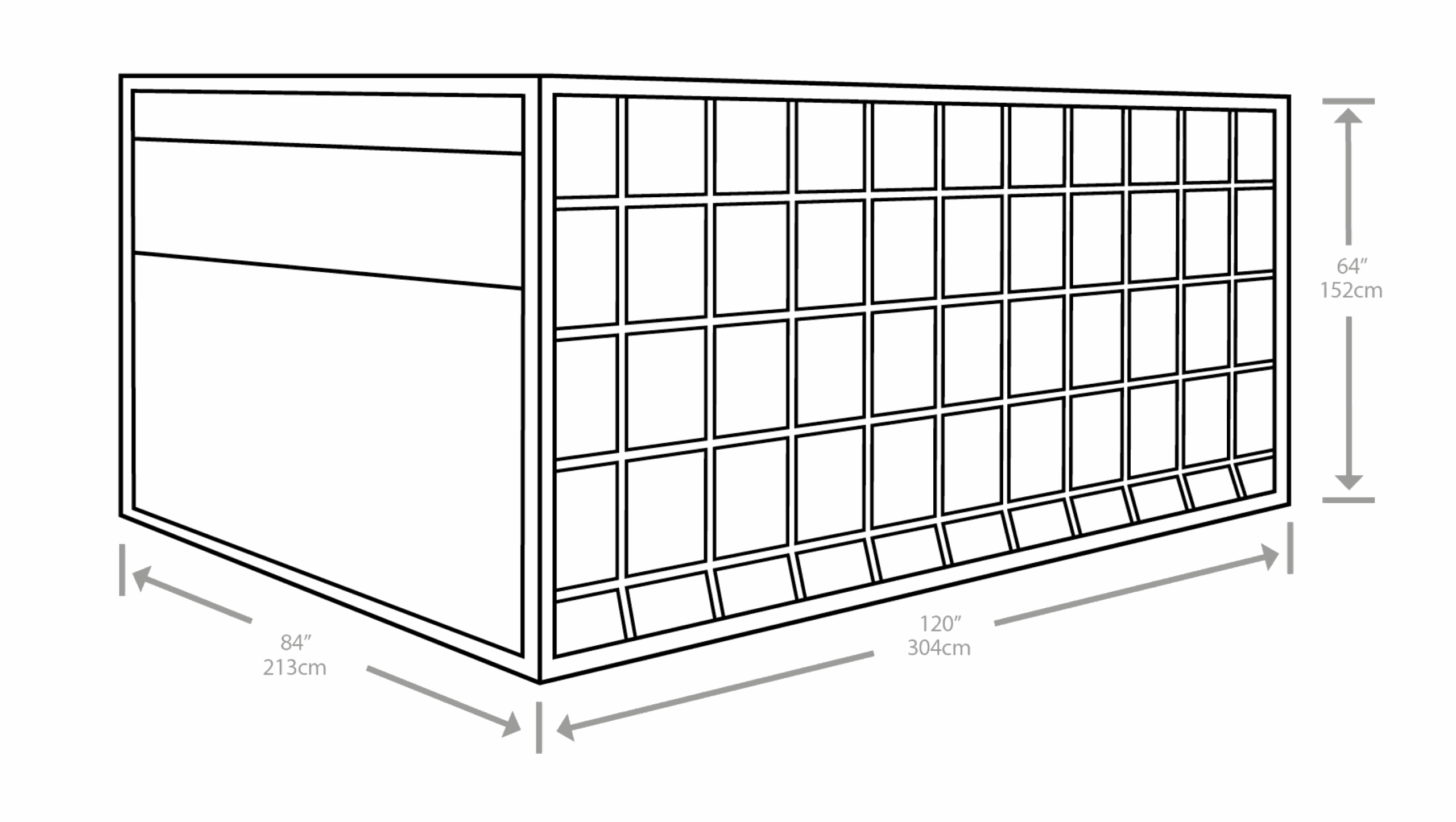

LD9

Dimensions

  • 224.5 cm x 157.5 cm x 317.5 cm (224.5 in. x 157.5 cm x 317.5 cm)

Volume

  • 10 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions).

PAP

Dimensions

  • 224,5 cm x 163,5 cm x 317,5 cm

Volume

  • 11,9 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions).

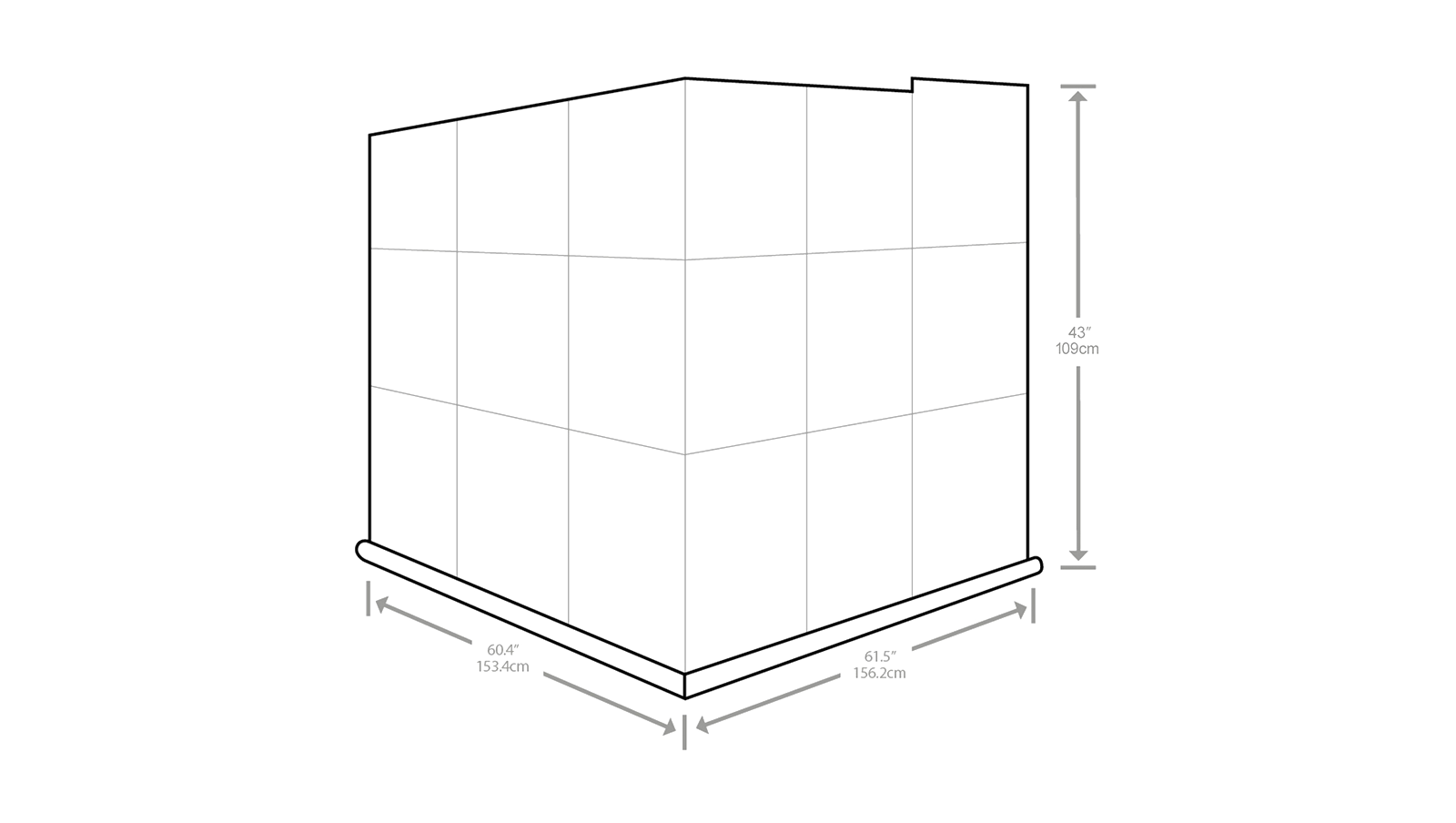

PKC

Dimensions

  • 153,4 cm x 156,2 cm x 109 cm

Volume

  • 2,02 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions).

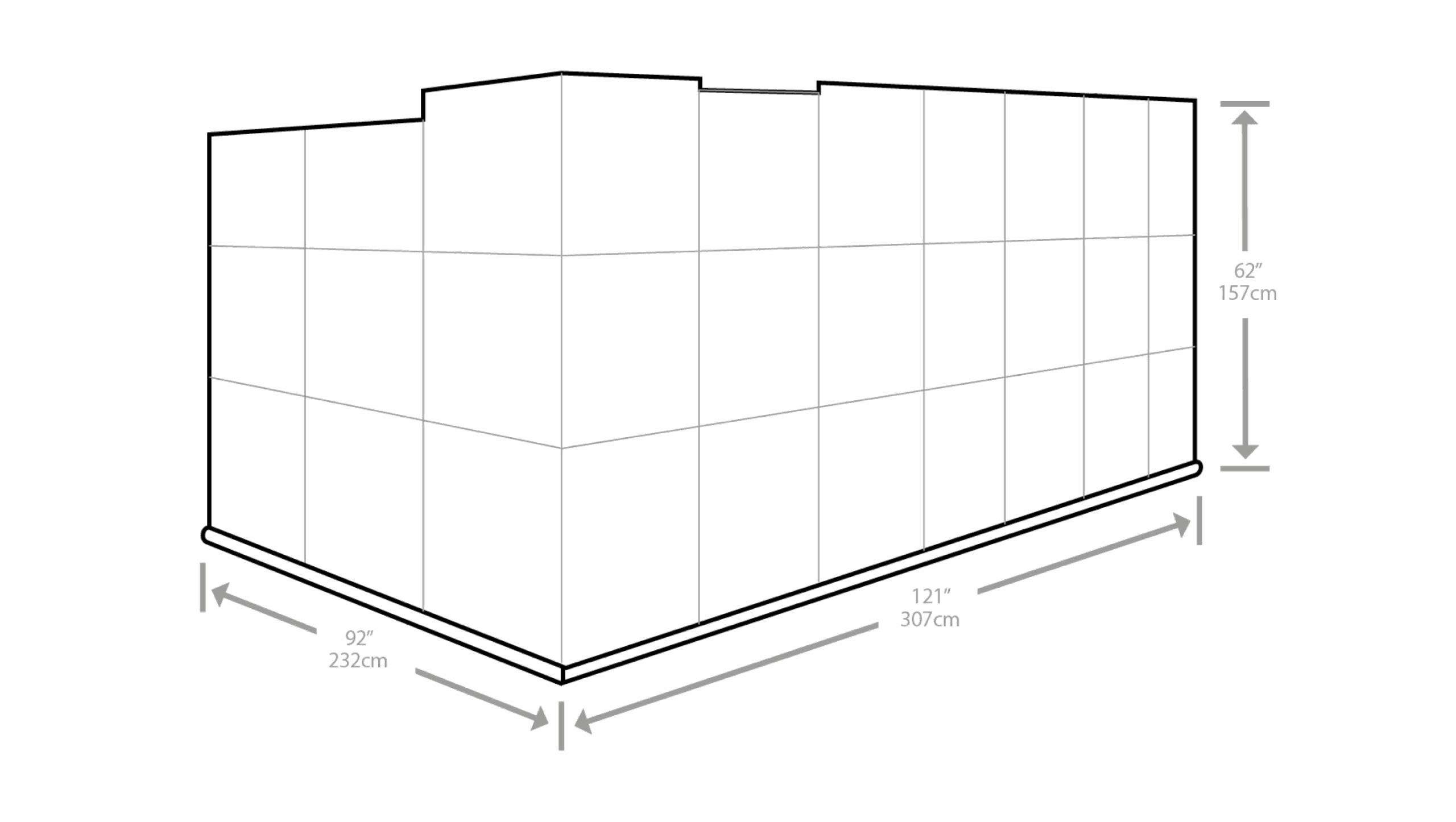

PMC

Dimensions

  • 244 cm x 163,5 cm x 317,5 cm

Volume

  • 12,7 m³

* Equipment dimensions may vary by manufacturer (especially interior dimensions).

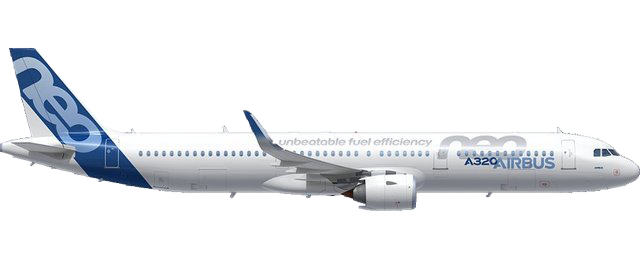

AIRBUS A320

Dimensions

  • Hold 1: 124 cm X 180 cm
  • Hold 3: 124 cm X 180 cm
  • Hold 5: 87 cm X 94 cm

Capacity

  • Volume 0.5 Ton

ULD Compatible

  • AKH

* Equipment dimensions may vary by manufacturer (especially interior dimensions).

AIRBUS A321

Dimensions

  • Hold 1: 124 cm X 180 cm
  • Hold 3: 124 cm X 180 cm
  • Hold 5: 87 cm X 94 cm

Capacity

  • Volume: 1 Tonne

ULD Compatible

  • AKH

* Equipment dimensions may vary by manufacturer (especially interior dimensions).

AIRBUS A330-200

Dimensions

  • Forward Door: 270 cm x 171 cm
  • Aft Door: 272 cm x 167 cm
  • Cargo Door: 95 cm x 107 cm

Capacity

  • Volume 14 Tons

ULD Compatible

  • LD3, LD9, PAP, PMC

* Equipment dimensions may vary by manufacturer (especially interior dimensions).

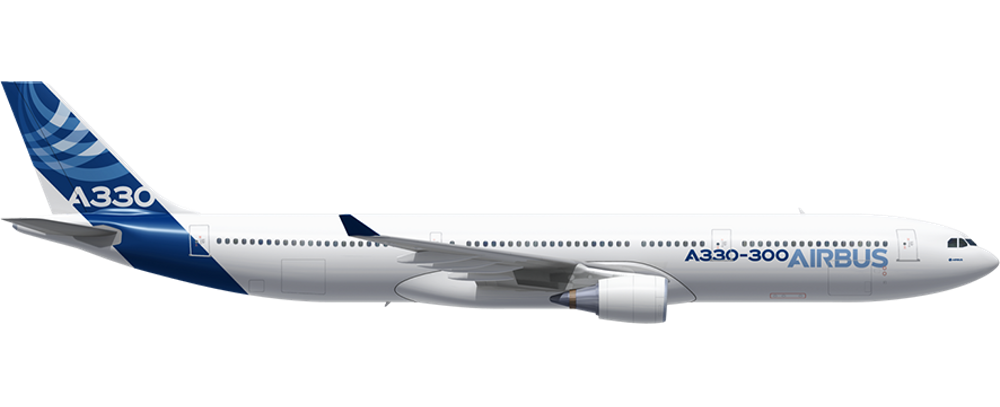

AIRBUS A330-300

Dimensions

  • Forward door: 270 cm x 167 cm
  • Aft door: 272 cm x 167 cm
  • Cargo door: 94 cm x 315 cm

Capacity

  • Volume 16 Tonnes

ULD Compatible

  • LD3, LD9, PAP, PMC, LD11, PKC

* Equipment dimensions may vary by manufacturer (especially interior dimensions).

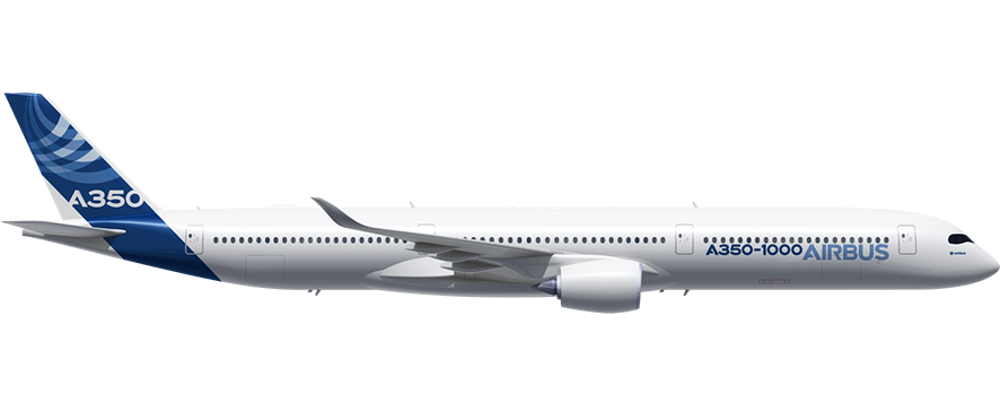

AIRBUS A350-1000

Dimensions

  • Forward door: 176 cm x 291 cm
  • Aft door: 175 cm x 285 cm
  • Bulk door: 76 cm x 95 cm

Capacity

  • Volume 25 tonnes

ULD Compatible

  • LD3, PMC, PAP

* Equipment dimensions may vary by manufacturer (especially interior dimensions).

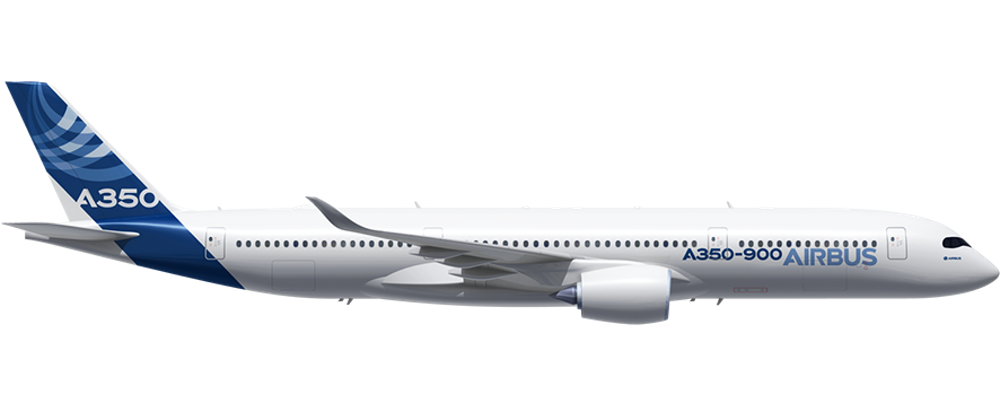

AIRBUS A350-900

Dimensions

  • Forward Door: 285 cm x 168 cm
  • Aft Door: 280 cm x 168 cm
  • Bulk cargo door: 94 x 76 cm

Capacity

  • Volume 17 tonnes

ULD Compatible

  • LD3, PMC, PAP

* Equipment dimensions may vary by manufacturer (especially interior dimensions).

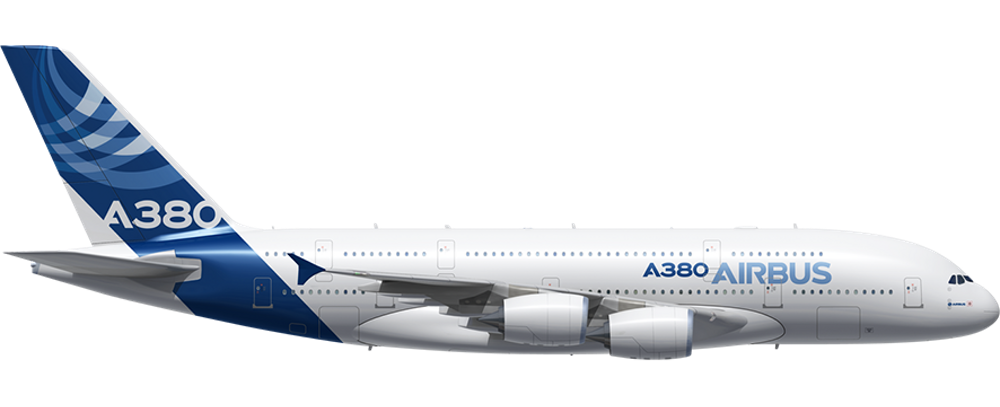

AIRBUS A380-800

Dimensions

  • Forward Door: 283 cm x 173 cm
  • Aft Door: 254 cm x 173 cm

Capacity

  • Capacity: 13.2 tonnes

ULD Compatible

  • ULD Compatible: LD3, LD 9, PMC, PAP, LD11

* Equipment dimensions may vary by manufacturer (especially interior dimensions).

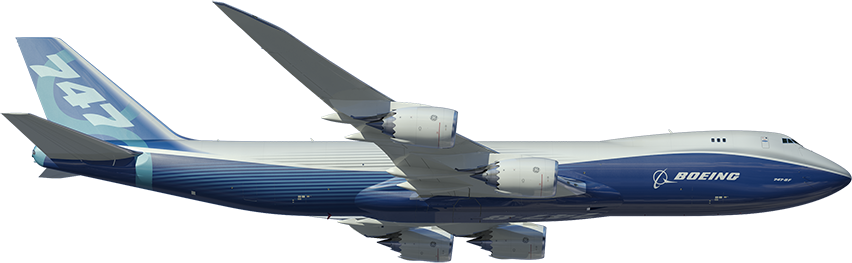

BOEING 747-8F

Dimensions

  • Nose door: 264 cm x 249 cm
  • Aft door: 264 cm x 168 cm
  • Cargo door: 112 cm x 168 cm

Capacity

  • Capacity 117 tonnes

ULD Compatible

  • LD3, LD9, LD11, PMC, PAP

* Equipment dimensions may vary by manufacturer (especially interior dimensions).

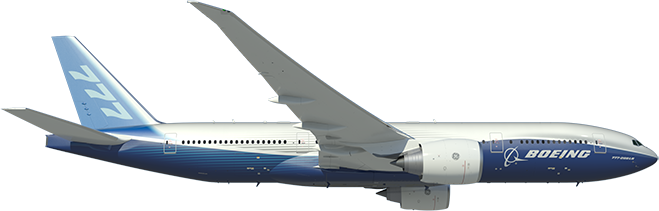

BOEING 777-200

Dimensions

  • Forward door: 269 cm x 170 cm
  • Aft door: 269 cm x 170 cm
  • Bulk cargo door: 91 cm x 103 cm

Capacity

  • Volume 20 Ton

ULD Compatible

  • LD3, LD9, LD11, PMC, PAP

* Equipment dimensions may vary by manufacturer (especially interior dimensions).

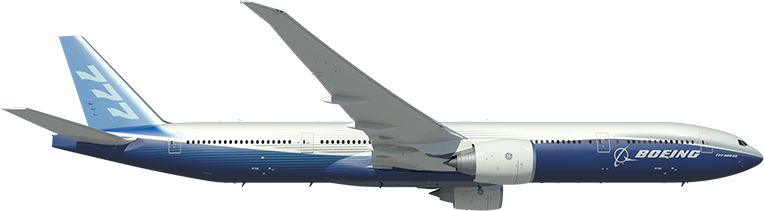

BOEING 777-300

Dimensions

  • Forward door: 269 cm x 170 cm
  • Aft door: 269 cm x 170 cm
  • Bulk cargo door: 91 cm x 103 cm

Capacity

  • Volume 25 tonnes

ULD Compatible

  • LD3, LD9, LD11, PMC, PAP

* Equipment dimensions may vary by manufacturer (especially interior dimensions).

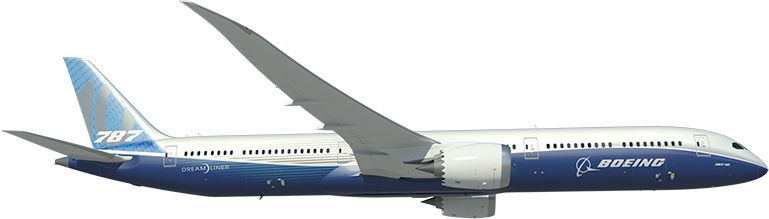

BOEING 787-10

Dimensions

  • Forward door: 269 cm x 170 cm
  • Aft door: 269 cm x 170 cm
  • Cargo door: 102 cm x 156 cm

Capacity

  • Volume 13 Tonnes

ULD Compatible

  • LD3, LD9, LD11, PMC, PAP

* Equipment dimensions may vary by manufacturer (especially interior dimensions).

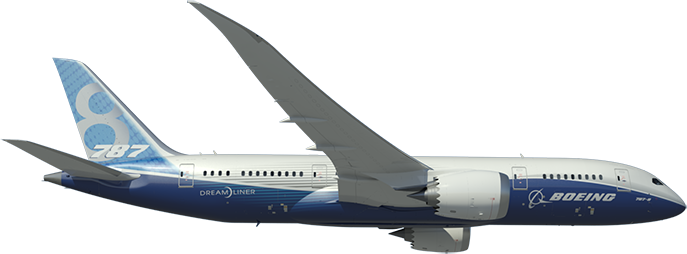

BOEING 787-8

Dimensions

  • Forward Door: 268 cm x 170 cm
  • Aft Door: 268 cm x 170 cm
  • Cargo Door: 101 cm x 114 cm

Capacity

  • Volume 9 Ton

ULD Compatible

  • LD3, LD9, LD11, PMC, PAP

* Equipment dimensions may vary by manufacturer (especially interior dimensions).

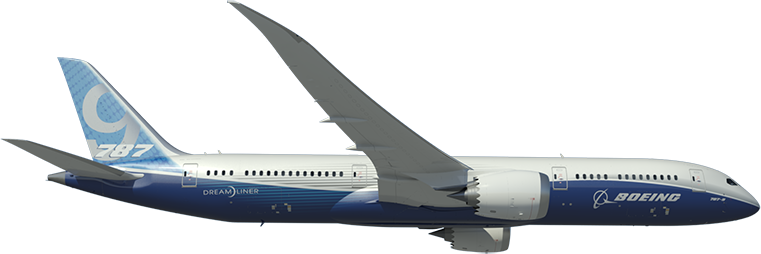

BOEING 787-9

Dimensions

  • Forward door: 268 cm x 170 cm
  • Aft door: 268 cm x 170 cm
  • Cargo door: 101 cm x 114 cm

Capacity

  • Volume 11 tonnes

ULD Compatible

  • LD3, LD9, LD11, PMC, PAP

* Equipment dimensions may vary by manufacturer (especially interior dimensions).

20' Dry Van loaded with 10 pallets measuring 100x120 cm

Internal Dimensions

External Dimensions

Doors

  • Width: 2,352 m
  • Length: 5,898 m
  • Height: 2,393 m
  • Width: 2,438 m
  • Length: 6,058 m
  • Height: 2,591 m
  • Width: 2,340 m
  • Length: 2,280 m

Max Load

MGW

Tare

Volume

  • 28,660 kg
  • 30,480 kg
  • 2,220 kg
  • 33,20 m³

20' Dry Van loaded with 10 pallets measuring 100x120 cm

Internal Dimensions

  • Width: 2,352 m
  • Length: 5,898 m
  • Height: 2,393 m

External Dimensions

  • Width: 2,438 m
  • Length: 6,058 m
  • Height: 2,591 m

Doors

  • Width: 2,340 m
  • Length: 2,280 m

Max Load

MGW

  • 30,480 kg

Tare

  • 2,220 kg

Volume

  • 33,20 m³

20' Dry Van loaded with 11 80x120 cm Euro pallets

Internal Dimensions

External Dimensions

Doors

  • Width: 2,352 m
  • Length: 5,898 m
  • Height: 2,393 m
  • Width: 2,438 m
  • Length: 6,058 m
  • Height: 2,591 m
  • Width: 2,340 m
  • Length: 2,280 m

Max Load

MGW

Tare

Volume

  • 28,260 kg
  • 30,480 kg
  • 2,220 kg
  • 33,20 m³

20' Dry Van loaded with 11 80x120 cm Euro pallets

Internal Dimensions

  • Width: 2,352 m
  • Length: 5,898 m
  • Height: 2,393 m

External Dimensions

  • Width: 2,438 m
  • Length: 6,058 m
  • Height: 2,591 m

Doors

  • Width: 2,340 m
  • Length: 2,280 m

Max Load

MGW

  • 30,480 kg

Tare

  • 2,220 kg

Volume

  • 33,20 m³

20' Reefer loaded with 10 Euro pallets (80x120 cm)

Internal Dimensions

External Dimensions

Doors

  • Width: 2.294 m
  • Length: 5.456 m
  • Height: 2.275 m
  • Width: 2.484 m
  • Length: 6,058 m
  • Height: 2,591 m
  • Width: 2.290 m
  • Length: 2.291 m

Max Load

MGW

Tare

Volume

  • 27,540 kg
  • 30,480 kg
  • 2,940 kg
  • 28.50 m³

20' Reefer loaded with 10 Euro pallets (80x120 cm)

Internal Dimensions

  • Width: 2.294 m
  • Length: 5.456 m
  • Height: 2.275 m

External Dimensions

  • Width: 2.484 m
  • Length: 6,058 m
  • Height: 2,591 m

Doors

  • Width: 2.290 m
  • Length: 2.291 m

Max Load

MGW

  • 30,480 kg

Tare

  • 2,940 kg

Volume

  • 28.50 m³

20' Reefer Loaded with 9 Pallets, 100x120 cm

Internal Dimensions

External Dimensions

Doors

  • Width: 2.294 m
  • Length: 5.456 m
  • Height: 2.275 m
  • Width: 2.484 m
  • Length: 6,058 m
  • Height: 2,591 m
  • Width: 2.290 m
  • Length: 2.291 m

Max Load

MGW

Tare

Volume

  • 27,540 kg
  • 30,480 kg
  • 2,940 kg
  • 28.50 m³

20' Reefer Loaded with 9 Pallets, 100x120 cm

Internal Dimensions

  • Width: 2.294 m
  • Length: 5.456 m
  • Height: 2.275 m

External Dimensions

  • Width: 2.484 m
  • Length: 6,058 m
  • Height: 2,591 m

Doors

  • Width: 2.290 m
  • Length: 2.291 m

Max Load

MGW

  • 30,480 kg

Tare

  • 2,940 kg

Volume

  • 28.50 m³

40' Dry Van loaded with 21 pallets of 100x120 cm

Internal Dimensions

External Dimensions

Doors

  • Width: 2.352 m
  • Length: 12.032 m
  • Height: 2.393 m
  • Width: 2.438 m
  • Length: 12.192 m
  • Height: 2.591 m
  • Width: 2.340 m
  • Length: 2.280 m

Max Load

MGW

Tare

Volume

  • 28,650 kg
  • 32,500 kg
  • 3,850 kg
  • 67.70 m³

40' Dry Van loaded with 21 pallets of 100x120 cm

Internal Dimensions

  • Width: 2.352 m
  • Length: 12.032 m
  • Height: 2.393 m

External Dimensions

  • Width: 2.438 m
  • Length: 12.192 m
  • Height: 2.591 m

Doors

  • Width: 2.340 m
  • Length: 2.280 m

Max Load

MGW

  • 32,500 kg

Tare

  • 3,850 kg

Volume

  • 67.70 m³

40' Dry Van loaded with 24 Euro pallets of 80x120 cm

Internal Dimensions

External Dimensions

Doors

  • Width: 2.352 m
  • Length: 12.032 m
  • Height: 2.393 m
  • Width: 2,430 m
  • Length: 12.192 m
  • Height: 2.591 m
  • Width: 2.340 m
  • Length: 2.280 m

Max Load

MGW

Tare

Volume

  • 28,650 kg
  • 32,500 kg
  • 3,850 kg
  • 67.70 m³

40' Dry Van loaded with 24 Euro pallets of 80x120 cm

Internal Dimensions

  • Width: 2.352 m
  • Length: 12.032 m
  • Height: 2.393 m

External Dimensions

  • Width: 2,430 m
  • Length: 12.192 m
  • Height: 2.591 m

Doors

  • Width: 2.340 m
  • Length: 2.280 m

Max Load

MGW

  • 32,500 kg

Tare

  • 3,850 kg

Volume

  • 67.70 m³

40' Reefer High Cube cargado con 20 palets de 100x120 cm

Internal Dimensions

External Dimensions

Doors

  • Width: 2,294 m
  • Length: 11,590 m
  • Height: 2,557 m
  • Width: 2.438 m
  • Length: 12.192 m
  • Height: 2,896 m
  • Width: 2,290 m
  • Length: 2,596 m

Max Load

MGW

Tare

Volume

  • 30,420 kg
  • 35,000 kg
  • 4,580 kg
  • 67.90 m³

40' Reefer High Cube cargado con 20 palets de 100x120 cm

Internal Dimensions

  • Width: 2,294 m
  • Length: 11,590 m
  • Height: 2,557 m

External Dimensions

  • Width: 2.438 m
  • Length: 12.192 m
  • Height: 2,896 m

Doors

  • Width: 2,290 m
  • Length: 2,596 m

Max Load

MGW

  • 35,000 kg

Tare

  • 4,580 kg

Volume

  • 67.90 m³

40' Reefer High Cube cargado con 20 palets 100x120 cm y 1 Euro palet de 80x120 cm

Internal Dimensions

External Dimensions

Doors

  • Width: 2,294 m
  • Length: 11,590 m
  • Height: 2,557 m
  • Width: 2.438 m
  • Length: 12.192 m
  • Height: 2,896 m
  • Width: 2,290 m
  • Length: 2,596 m

Max Load

MGW

Tare

Volume

  • 30,420 kg
  • 35,000 kg
  • 4,580 kg
  • 67.90 m³

40' Reefer High Cube cargado con 20 palets 100x120 cm y 1 Euro palet de 80x120 cm

Internal Dimensions

  • Width: 2,294 m
  • Length: 11,590 m
  • Height: 2,557 m

External Dimensions

  • Width: 2.438 m
  • Length: 12.192 m
  • Height: 2,896 m

Doors

  • Width: 2,290 m
  • Length: 2,596 m

Max Load

MGW

  • 35,000 kg

Tare

  • 4,580 kg

Volume

  • 67.90 m³

40' Reefer High Cube Loaded with 23 Euro Pallets (80x120 cm)

Internal Dimensions

External Dimensions

Doors

  • Width: 2,294 m
  • Length: 11,590 m
  • Height: 2,557 m
  • Width: 2.438 m
  • Length: 12.192 m
  • Height: 2,896 m
  • Width: 2,290 m
  • Length: 2,596 m

Max Load

MGW

Tare

Volume

  • 30,420 kg
  • 35,000 kg
  • 4,580 kg
  • 67.90 m³

40' Reefer High Cube Loaded with 23 Euro Pallets (80x120 cm)

Internal Dimensions

  • Width: 2,294 m
  • Length: 11,590 m
  • Height: 2,557 m

External Dimensions

  • Width: 2.438 m
  • Length: 12.192 m
  • Height: 2,896 m

Doors

  • Width: 2,290 m
  • Length: 2,596 m

Max Load

MGW

  • 35,000 kg

Tare

  • 4,580 kg

Volume

  • 67.90 m³

Corrosive

Class Number

  • 8

Merchandise Category

  • Corrosive substances

Danger when wet emits flammable gases

Class Number

  • 4.3

Merchandise Category

  • Flammable solids

Explosive 1

Class Number

  • 1

Merchandise Category

  • Explosivos

Explosive 2

Class Number

  • 1

Merchandise Category

  • Explosivos

Explosive 3

Class Number

  • 1

Merchandise Category

  • Explosivos

Flammable gas

Class Number

  • 2

Merchandise Category

  • Flammable gas

Flammable liquid

Class Number

  • 2

Merchandise Category

  • Flammable gas

Flammable solid

Class Number

  • 4.1

Merchandise Category

  • Flammable solids

Harmful, do not store with foodstuffs

Class Number

  • 6.1

Merchandise Category

  • Poisonous substances

Non-flammable compressed gas

Class Number

  • 2

Merchandise Category

  • Flammable gas

Organic peroxide

Class Number

  • 5.2

Merchandise Category

  • Oxidising substance

Oxidising substance

Class Number

  • 5

Merchandise Category

  • Oxidising substance

Poisonous

Class Number

  • 6

Merchandise Category

  • Poisonous substances

Poisonous gas

Class Number

  • 2

Merchandise Category

  • Flammable gas

Radioactive category I

Class Number

  • 7

Merchandise Category

  • Radioactive substances

Radioactive category II

Class Number

  • 7

Merchandise Category

  • Radioactive substances

Radioactive category III

Class Number

  • 7

Merchandise Category

  • Radioactive substances

Spontaneous combustion

Class Number

  • 4.2

Merchandise Category

  • Flammable solids
Oper-Traimer-Instructions-in-the-event-of-a-claim(Customers)-01

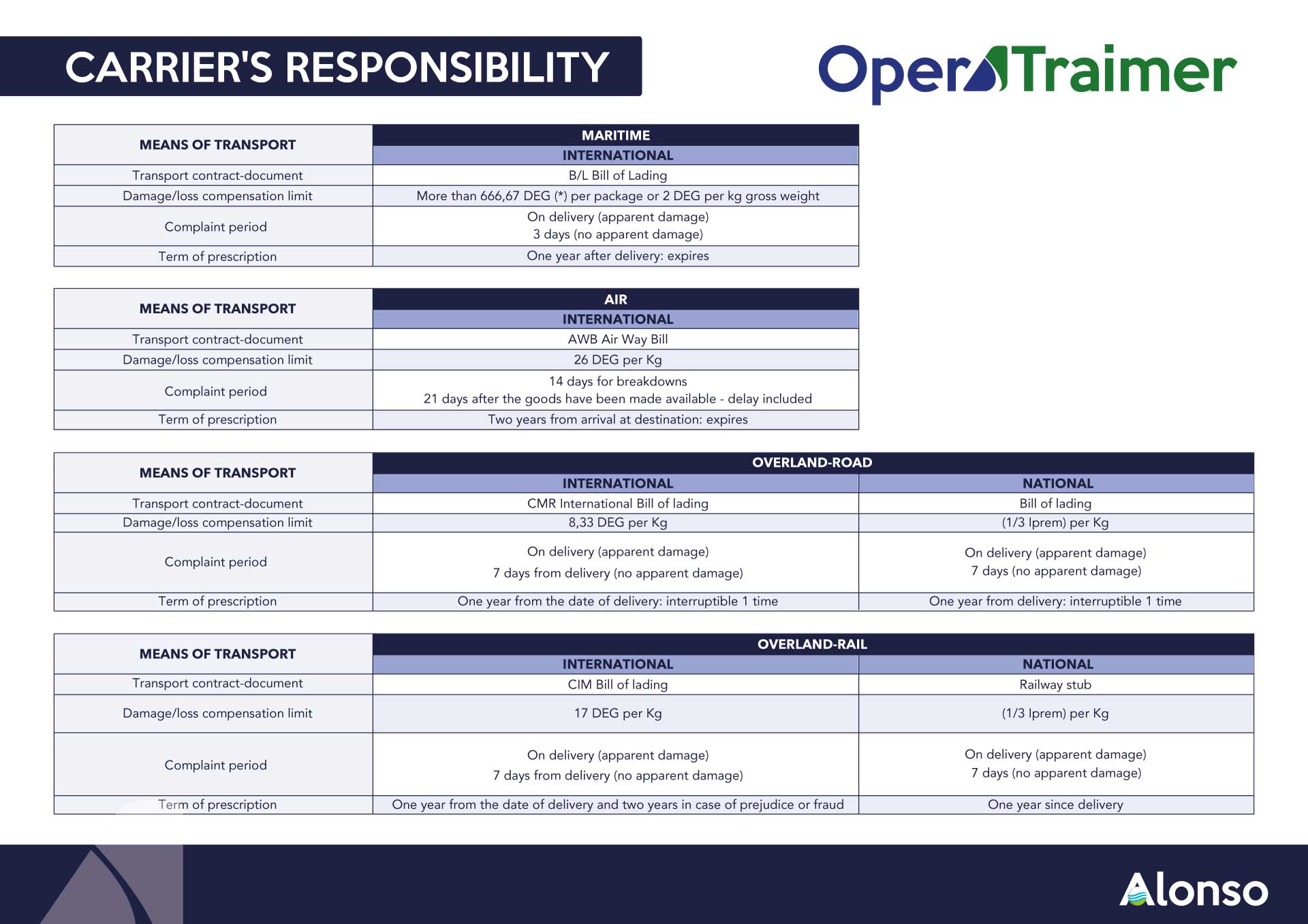

Oper-Traimer-Instructions-in-the-event-of-a-claim(Customers)-02

B/L Bill of Lading

Bill of lading covering the goods, which is the title of ownership thereof.

BAF Bunker Adjustment Factor

Adjustment due to changes in the price of crude oil.

CAF Currency Adjustment Factor

Currency adjustment.

CONSIGNEE

The importer or recipient of the goods.

DV Dry van

Dry cargo

ETA Expected To Arrive

Estimated Time of Arrival.

ETD Estimated Time of Departure

Estimated date of departure.

EXPRESS RELEASE

Issuance of non-original bill of lading (B/L).

FCL Full Container Load

Full container load.

FEEDER

Small vessel that transports goods to the main port and connects with the ocean-going vessel.

GRI General Rate Increase

General Rate Increase.

IMO SURCHARGE

Surcharge for dangerous goods.

ISPS

Port Security after the terrorist attacks.

L/C Letter of Credit

Payment method.

LCL Less than Container Load

Less than container load (consolidation).

MOTHER VESSEL

Ocean vessel.

NOTIFY

The person notified of the arrival.

OWS Over weight surcharge

Surcharge charged by shipping companies for heavy containers, generally applied to 20′ equipment. Each shipping company may establish a different scale.

PSS Peak Season Surcharge

High season surcharge due to lack of space on ships.

REEFER

Container with electrical connection to maintain goods at a specific temperature.

SC, SUEZ CANAL

Surcharge for ships passing through the Suez Canal.

SCFI (Shanghai Containerized Freight Index)

Index measuring sea freight rates for containers from Shanghai to various destinations around the world.

SEAWAYBILL

Issuance of non-original bill of lading (B/L).

SHIPPER

The exporter or shipper.

SURRENDER B/L

Issuance of original bill of lading (B/L) validated as an express release (a copy would suffice in place of the original).

THC Terminal handling charge

Load or unload containers at the port.

TT, TRANSIT TIME Transit Time

The time it takes to arrive by ship from the time it leaves port to its destination.

B/L Bill of Lading

Bill of lading covering the goods, which is the title of ownership thereof.

EXPRESS RELEASE

Issuance of non-original bill of lading (B/L).

L/C Letter of Credit

Payment method.

SEAWAYBILL

Issuance of non-original bill of lading (B/L).

SURRENDER B/L

Issuance of original bill of lading (B/L) validated as an express release (a copy would suffice in place of the original).

CONSIGNEE

The importer or recipient of the goods.

DV Dry van

Dry cargo

ETA Expected To Arrive

Estimated Time of Arrival.

ETD Estimated Time of Departure

Estimated date of departure.

FCL Full Container Load

Full container load.

FEEDER

Small vessel that transports goods to the main port and connects with the ocean-going vessel.

GRI General Rate Increase

General Rate Increase.

LCL Less than Container Load

Less than container load (consolidation).

MOTHER VESSEL

Ocean vessel.

NOTIFY

The person notified of the arrival.

REEFER

Container with electrical connection to maintain goods at a specific temperature.

SHIPPER

The exporter or shipper.

THC Terminal handling charge

Load or unload containers at the port.

TT, TRANSIT TIME Transit Time

The time it takes to arrive by ship from the time it leaves port to its destination.

BAF Bunker Adjustment Factor

Adjustment due to changes in the price of crude oil.

CAF Currency Adjustment Factor

Currency adjustment.

IMO SURCHARGE

Surcharge for dangerous goods.

ISPS

Port Security after the terrorist attacks.

OWS Over weight surcharge

Surcharge charged by shipping companies for heavy containers, generally applied to 20′ equipment. Each shipping company may establish a different scale.

PSS Peak Season Surcharge

High season surcharge due to lack of space on ships.

SC, SUEZ CANAL

Surcharge for ships passing through the Suez Canal.

SCFI (Shanghai Containerized Freight Index)

Index measuring sea freight rates for containers from Shanghai to various destinations around the world.
Clientes
